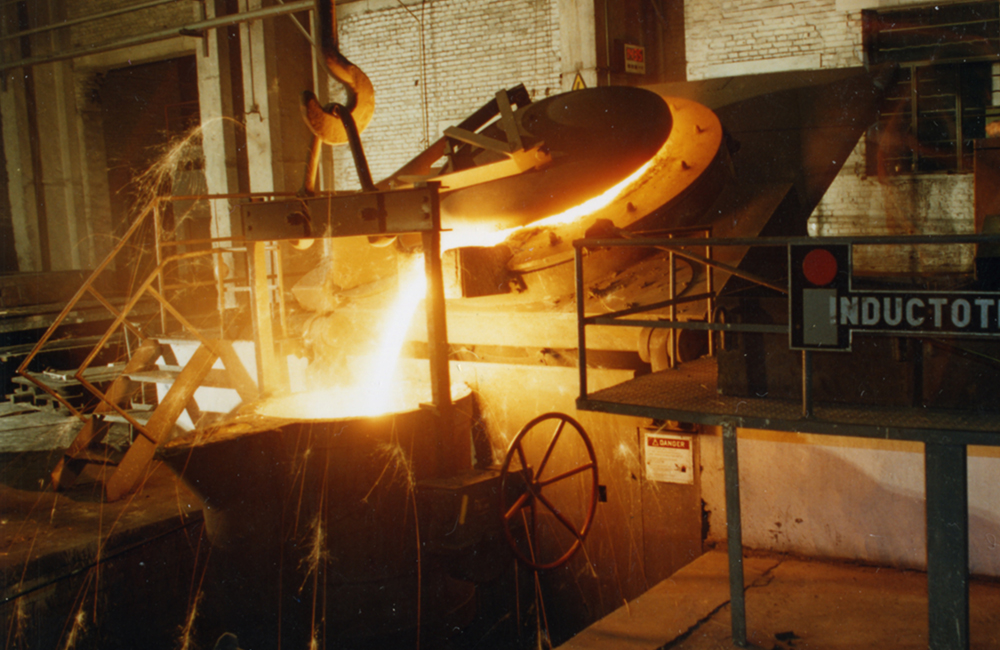

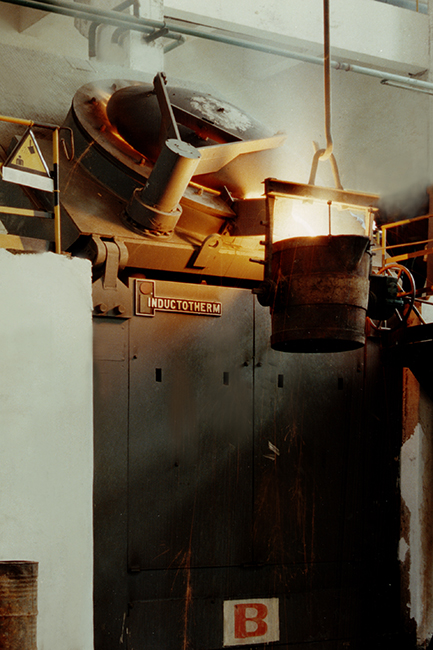

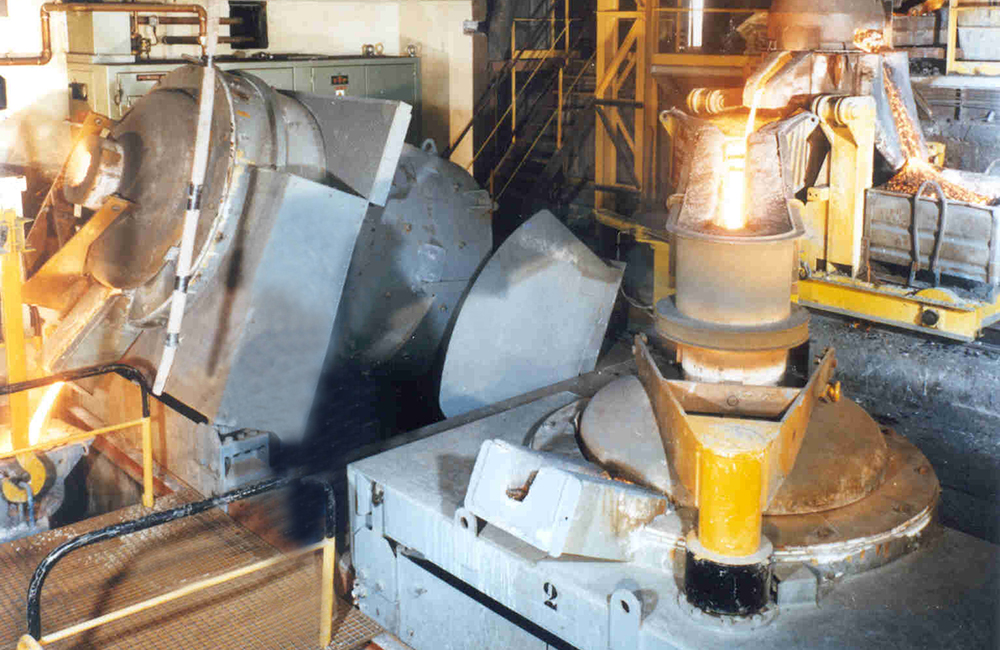

Coreless Holding Furnaces

Like Channel Holding Furnaces, Coreless Holding Furnaces maintain a continuous supply of metal ready to pour twenty-four hours a day, seven days a week.

Inductotherm coreless induction holding furnaces offer many advantages. They combine high productivity with maximum alloy flexibility. Compared to a channel holding furnace, it requires significantly lower capital and installation costs. Our coreless holding furnaces can be emptied to handle alloy changes on short notice and do not require energy-wasting off-shift holding.

When to use a coreless induction holding furnace?

Select a Coreless Holding Furnace when holding requirements cover one or two shifts per day, are less than seven days per week, or when the need to change alloys is required.

Advanced options for increasing efficiency and productivity

Inductotherm coreless holding furnaces with an optional Mini-HeelTM Coil feature uses our patented extension of the inductor coils below the bottom level of the molten metal. This greatly increases electrical efficiency at low metal levels and permits continuous duplexing with as little as a 10 percent heel. This allows a full 90 percent metal volume usage when duplexing, increasing both throughput and productivity.

REQUEST A QUOTE »

Inductotherm Corp.

10 Indel Ave., P.O. Box 157 Rancocas, NJ 08073-0157

Features

Standard FeaturesOptional FeaturesAdditional Mini-Heel® Coil Feature
Large Access PanelsLoad CellsPatented Coil Extension
Steel Shell ProtectionIntegrated Fume Ring
Insulated CoversFume Collectors and Hoods
Higher FreeboardBack-Tilting, Nose-Tilting and Pre-Tilting Systems
Ground Leak DetectionSafety Pit Guards
Magnetic ShuntsWeigh Frames
Push-Out Lining System

Tech Specs

CapacitiesFactory Tested
350 Kilograms to 100 Metric Tons [770 Pounds to 110 Short Tons]Critical Components
