Coreless Coating Pots

Coreless Coating Pots are available for all coating applications. They are recommended for multiple alloy coatings, particularly when producing aluminum zinc and other aluminum alloy coatings, as they eliminate the relatively frequent inductor changes associated with these coatings.

REQUEST A QUOTE »

Inductotherm Corp.

10 Indel Ave., P.O. Box 157 Rancocas, NJ 08073-0157

LEARN MORE

Coreless Coating Pots feature our patented, industry-leading coil design which extends the coil below the bottom of the bath to provide superior magnetic coupling and stirring of the metal. Due to their superior stirring effects, our Coreless Coating Pots are able to achieve higher-power density levels than traditional channel pots, minimizing the necessary overall capacity required to meet production demands. This translates to cost savings through reduction in raw material requirements and lower energy requirements. Features include:

  • A rugged design that withstands the most severe mill environments
  • A circular design provides excellent refractory support while minimizing required capacity

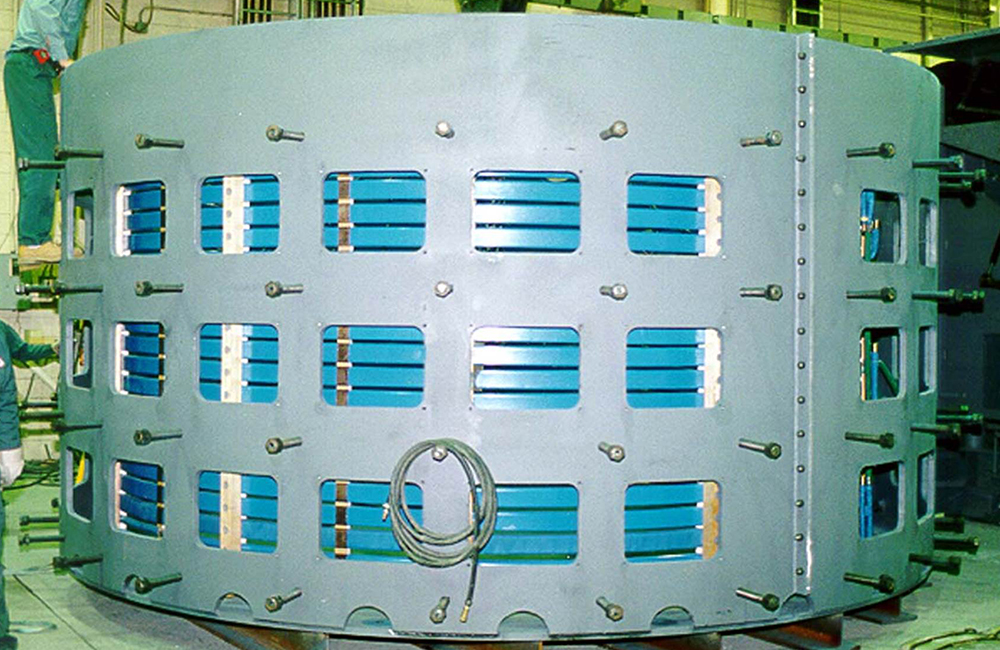

  • A single inductor coil enclosed in a heavy steel shell for additional protection
  • Bogies and lift options that are available for pot movement for multiple pot installations
  • Available options to change stirring patterns on-demand

Features

Standard FeaturesOptional Features
Solid-State VIP® Power Supply Units with SCR TechnologyInsulated Pot Covers
Water Cooling Systems with Emergency BackupMetal Level Measurement and Monitoring
Molten Metal Leakage DetectionCommunication Options via a Variety of Industrial Protocols
Moveable Pot Designs for Multi-Pot Installations
Pot Lifting Systems for Multi-Pot Installations
Advanced Stirring Control
Automated Robotic Dross Removal Provided by the ARMS® System

Tech Specs

CapacitiesFactory Tested
10 to 210 Metric Tons [11 to 231 Short Tons] of Molten Zinc Holding CapacityCritical Components
Click here to contact Inductotherm for Custom Solutions
